Basic Info

    • Model NO.: ZLP630
    • The Width of Platform: 760mm
    • Specification: CE
    • HS Code: 8428909090
    • Certification: CE
    • Trademark: Rigid
    • Origin: Made in China
Product Description

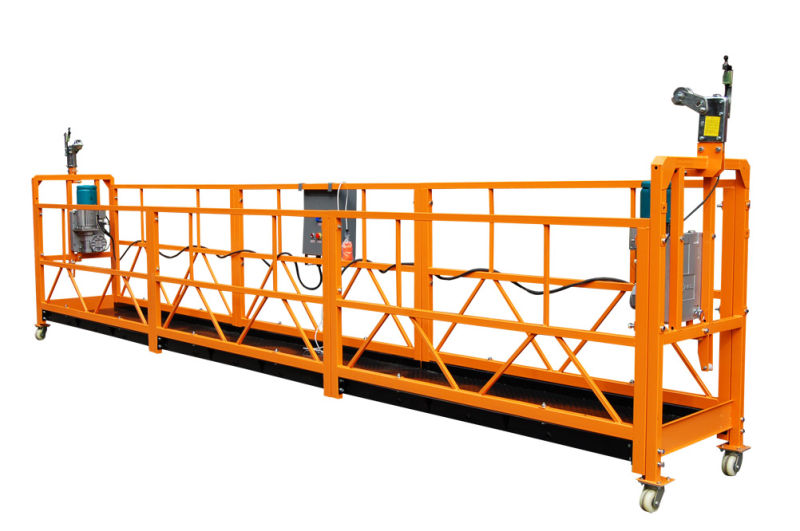

ZLP630 hot Zinc-plated steel screw type end stirrup cradle

Glass cleaning tools Suppliers
Description
ZLP series are for temporary applications for lifting people and their working equipment – at unlimited heights.

The model perfectly suited to lightweight applications such as painting and decorating, refurbishing, jointing and repairs, windows cleaning etc. The complete system consists of the working platform equipped with two electric LTD hoists and the support wheels, suspended by means of steel wire ropes from a suspension structure.

Safety systems

To ensure safe operation without danger to personnel, the platform is fitted with the following safety devices:

1. Service brake incorporated in the LTD hoist.
2. Two fall arrest devices acting on the safety wire ropes.
3. Two upper limit switches.
4. No power descent in case of power failure.
5. Emergency stop.
6. Phase controller. (Option)
7. Overload sensor incorporated in the LTD hoists according to EN 1808. (Option)
The parameters of ZLP series suspended platform
Tpye ZLP500 ZLP630 ZLP800 ZLP1000
Rated Load 500kg 630kg 800kg 1000kg
Lifting speed 9m/min 9m/min 9m/min 8.7m/min
Voltage-3phase 380V(415V/220V) 380V(415V/220V) 380V(415V/220V) 380V(415V/220V)
Frequency 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz
Power 1.1×2 1.5×2 1.8×2 2.0×2
Hoist LTD50 LTD63 LTD80 LTD100
Safety lock LSF308 LSF308 LSF309 LSF310
Dia.of Wire Rope 4×31SW+FC-8.3mm 4×31SW+FC-8.3mm 4×31SW+FC-9.1mm 4×31SW+FC-10.2mm
Plateform Size  (L×W×H) (2.5×2)×0.76×1.45M (2×3)×0.76×1.45M (2.5×3)×0.76×1.45M (2.5×3)×0.76×1.45M
Weight of Suspended Jibs 340kg 340kg 340kg 340kg
Weight of Lifting Part 410kg(Steel)
290kg(Aluminum)		 450kg(Steel)
310kg(Aluminum)		 520kg(Steel)
340kg(Aluminum)		 520kg(Steel)
340kg(Aluminum)
Counter Weight 800kgs 900kgs 1000kgs 1200kgs
20GP Qty Of Package 10Sets 10Sets 9Sets 9Sets
*The weight of lifting part includes platform,hoist,safety locks and electric control system.

Suspended Platform Details
Perfect the details of the process and quality is the guarantee

<<<
LTD Series Hoist
High quality Die-casting aluminum casing

<<<
Electrical Control box
First class electrical components

<<<
Screw Type
Safe, reliable and convenient

<<<
OSL Series Safety Lock
Overspeed (Centrifugal) type for all stirrups

<<<
LSF Series Safety Lock
Anti-Tilt type for end stirrup platform

<<<
Pin type
Quick and easy to assemble

End stirrup:
Fitted at the ends of the platform.

Advantages:
The most economical and lightweight version, although showing extraordinary performances.

Frame stirrup:
Slipped over the platform like a “frame”.

Advantages:
The ends of the platform and therefor the building corners are clear and can be easily accessed, exchangeable with the upper part of the end stirrup.

“L” stirrup:
Placed at the rear of the platform behind the workers.

Advantages:
The working surface is completely clear and the whole façade can be easily accessed.

Anchoring Options

Temporary suspended platforms Suppliers

Light Parapet clamp                                             Parapet clamp                                                       N ormal suspension ji

In most applications, it is possible to use a system of mobile suspension jibs in the roof for the attachment of temporary suspended platforms.
